DeWalt Engineered by Powers Dewalt eng. by Powers 8490SD-PWR – AC 100+ Gold® Adhesive Anchor – SBS – 28 Oz. – Pkg Qty 8

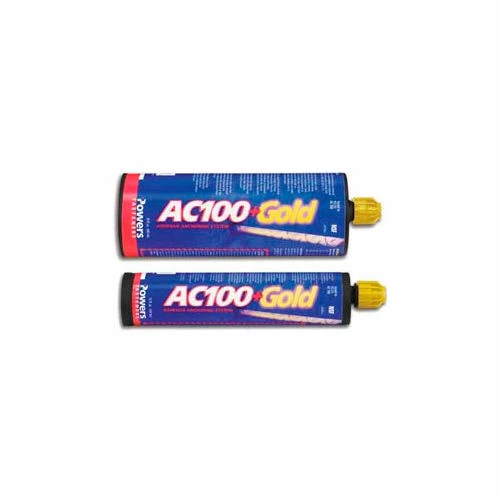

The AC100+ Gold is a two-component vinylester adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. The AC100+ Gold is designed for bonding threaded rod and reinforcing bar elements into drilled holes in concrete and masonry base materials.

General Applications and Uses:

• Bonding threaded rod and reinforcing bar into hardened concrete and masonry
• Evaluated for use in dry and water-saturated concrete (including water filled holes)
• Suitable to resist loads in cracked or uncracked concrete base materials
• Can be installed in a wide range of base material temperatures; qualified for structural applications in concrete as low as 14° F
• Qualified for seismic (earthquake) and wind loading

Features & Benefits:

• Designed for use with threaded rod and reinforcing bar hardware elements
• Consistent performance in low and high strength concrete
• Evaluated and recognized for freeze/thaw performance (interior and exterior applications)
• Evaluated and recognized for a range of embedments
• Versatile low odor formula with quick cure time
• Evaluated and recognized for long term and short term loading
• Mixing nozzles proportion adhesive and provide simple delivery method into drilled holes
• Cartridge design allows for multiple uses using extra mixing nozzles

Approvals and Listings:

• International Code Council, Evaluation Service (ICC-ES) ESR-2582 for concrete
• International Code Council, Evaluation Service (ICC-ES) ESR-3200 for masonry
• Code compliant with the 2015 IRC, 2015 IBC, 2012 IBC, 2012 IRC, 2009 IBC, and 2009 IRC.
• Tested in accordance with ASTM E488 / ACI 355.4 and ICC-ES AC308 for use in structural concrete with ACI 318-14 Chapter 17 or ACI 318-11/08 Appendix D.
• Compliant with NSF/ANSI Standard 61 for drinking water system components – health effects; meets requirements for materials in contact with potable water and water treatment
• Conforms to requirements of ASTM C 881 and AASHTO M235, Types I, II, IV and V, Grade 3, Classes A & B (meets Type III with exception of elongation)
• Department of Transportation listings
