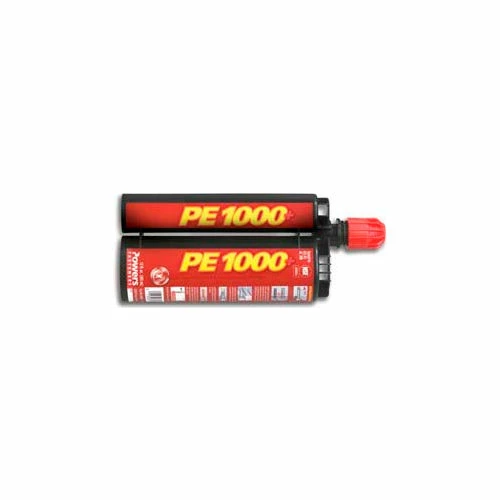

DeWalt Engineered by Powers Dewalt eng. by Powers 0502SD-PWR – PE1000+® Adhesive Anchor, Dual Cartridge, 20 OZ. – Pkg Qty 12

The PE1000+ is a two-component, high strength adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. The PE1000+ is designed for bonding threaded rod and reinforcing bar hardware into drilled holes in concrete and solid masonry base materials.

General Applications and Uses:

• Bonding threaded rod and reinforcing bar into hardened concrete and grouted CMU
• Evaluated for use in dry and water-saturated concrete including water-filled holes
• Cracked and uncracked concrete
• Seismic and wind loading (see ESR-2583)
• Hammer-drill and diamond core drilled holes
• Can be installed in a wide range of base material temperatures

Features and Benefits:

• Designed for use with threaded rod and reinforcing bar hardware elements
• Consistent performance in low and high strength concrete (2,500 to 8,500 psi)
• Evaluated and recognized for freeze/thaw performance
• Evaluated and recognized for long term and short term loading
• Evaluated and recognized for variable embedments
• Cartridge design allows for multiple uses using extra mixing nozzles
• Mixing nozzles proportion adhesive and provide simple delivery method into drilled holes
• Easy dispensing reduces applicator fatigue

Approvals and Listings:

• International Code Council, Evaluation Service (ICC-ES) ESR-2583
• Code compliant with the 2015 IBC, 2015 IRC, 2012 IBC, 2012 IRC, 2009 IBC, 2009 IRC, 2006 IBC, and 2006 IRC
• Tested in accordance with ACI 355.4 and AC308 for use in structural concrete according to ACI 318 Appendix D (Strength Design)
• Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and uncracked concrete including seismic and wind loading
• Compliant with NSF/ANSI Standard 61 for drinking water system components – health effects; minimum requirements for materials in contact with potable water and water treatment
• Conforms to requirements of ASTM C 881, Types I, II, IV and V, Grade 3, Classes B & C (also meets type lll except for elongation)
• Department of Transportation listings
